160AH 48V Off Grid Lithium Battery Communication Station Power Storage Module
The 160AH 48V communication base station power supply industrial quality is base on advanced energy storage module based on LiFePO4 technology and intelligent management system. This realiable lithium battery is safe, durable and easy to install in any new or exsiting telecom sites; expecially suitable for off-grid sites.
The 160AH 48V communication base station power supply industrial quality is base on advanced energy storage module based on LiFePO4 technology and intelligent management system. This realiable lithium battery is safe, durable and easy to install in any new or exsiting telecom sites; expecially suitable for off-grid sites.
Quick Detail:
- Compact modular integration
- Easy connection in series or parallel Intelligent battery
- Management system
- Built-in cell monitoring and balancing
- Real-time monitoring
- Multi-level safety design
- Temperature detection function
- Alarm function
- Convenient for installation
- Abundant communication interfaces
- High operational reliability
- Intelligent BMS and standard BMS for option
Product Details:
| Battery Pack | Nominal capacity | 160Ah |
| Nominal voltage | 51.2V |
| Charge voltage | 56V-57.6V |
| Maximum charging voltage | 58.4V |
| Maximum charging current | 100A(1C3) |
| Maximum discharge current | 100A(1C3) |
| Standard charging current | 16A(0.1C3) |
| Standard discharge current | 16A(0.1C3) |
| Battery weight | ≤110Kg |
Maximum external dimensions
(width*depth*thickness)(mm) | 625* 640*287.4 |
| Proper temperature charging | 0℃～55℃ |
| Proper temperature discharge | -10℃～65℃ |
| Power Management System BMS | Single overvoltage protection value | 3.75V |
| Overpressure release value | 3.34V |
| Single undervoltage protection value | 2.5V |
| Undervoltage release value | 2.9V |
| Overcurrent protection value | 120A |
| Overcurrentshort circuit protection recovery condition | Charging release |
| Balanced on | ≥3.5V,Pressure difference 30mV |
| Letter of agreement | RS485,RS232 |
160AH 48V Communication Base Station Power Supply Dimensions
Design Features:
Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership.
Higher Power: Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity.
Superior Safety: Lithium Iron Phosphate chemistry eleminates the risk of explosion or combustion due to high impact overcharging or short circuit situation.
Lighter Weight : About 40% of the weight of a comparable lead acid battery . A " drop in" replacement for lead acid batteries
Wider Temperature Range: -20℃~60℃
Applications:
- Energy Storage: Solar Wind Hybrid Power System, City On Grid or Off Grid, Community and Family.
- Back up System and UPS: Telcom Base, CATV system, Computer Server Center, Medical Instrumnt, Military Equipment .
Product Tags:
|
|

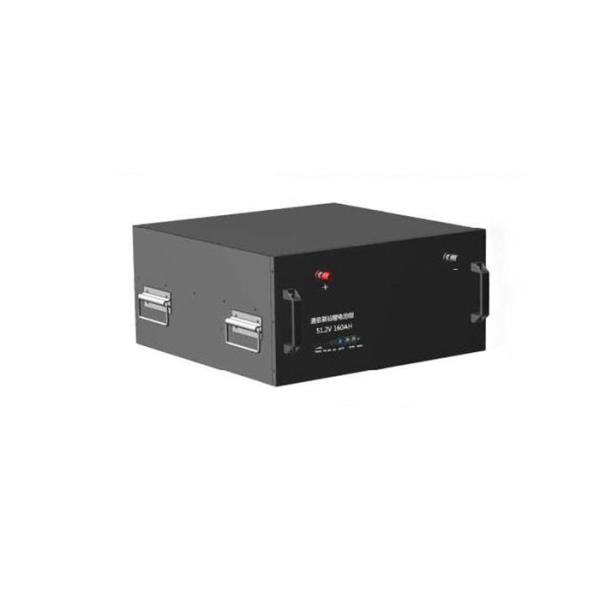

160AH 48V Off Grid Lithium Battery Communication Station Power Storage Module Images
|
